NBTmarine | SKU:
18" NBT Cruiser Unit
Regular price
$3,499.99
Unit price
/
Unavailable
18" NBT Cruiser Unit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
18" NBT Cruiser Unit
Regular price
$3,499.99
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description

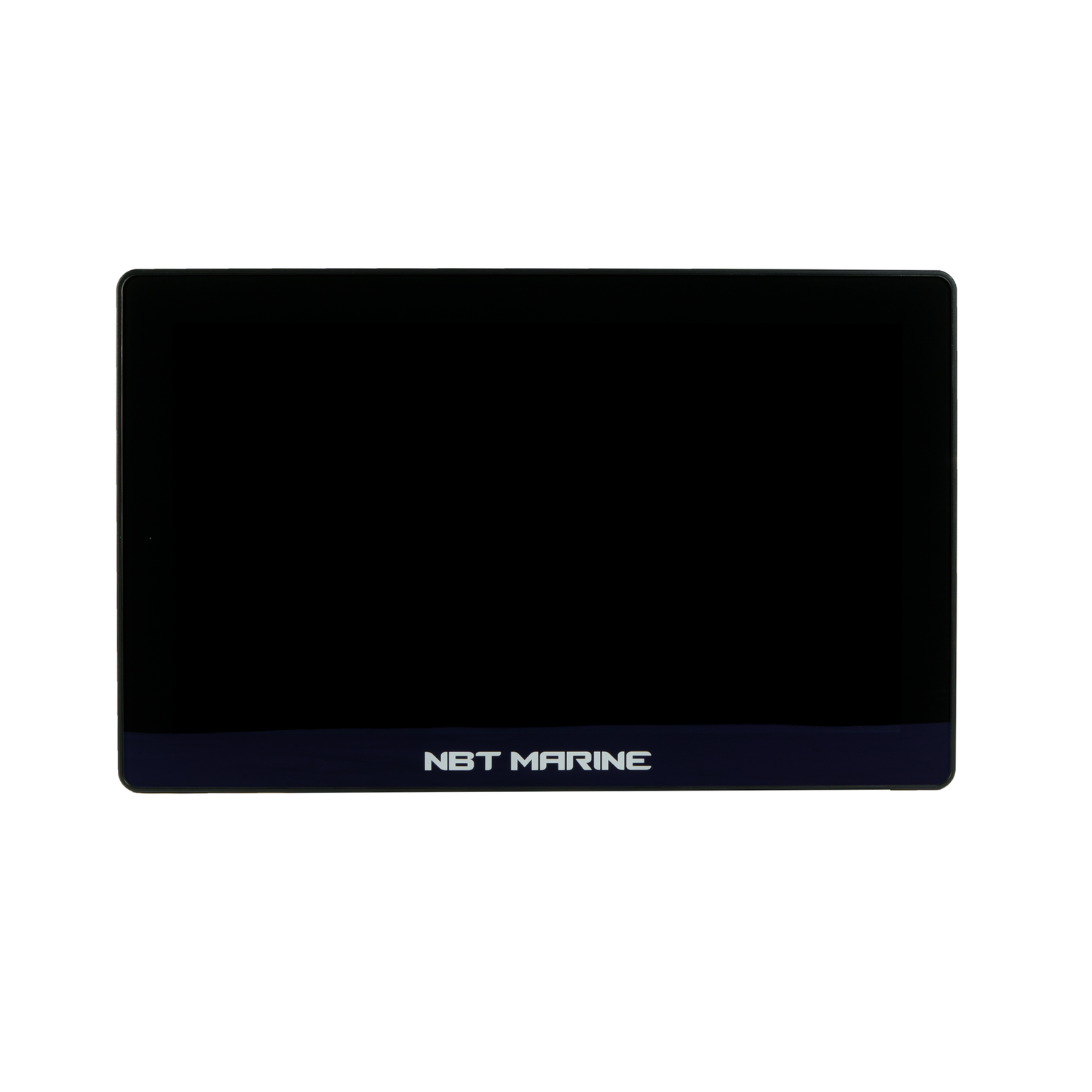

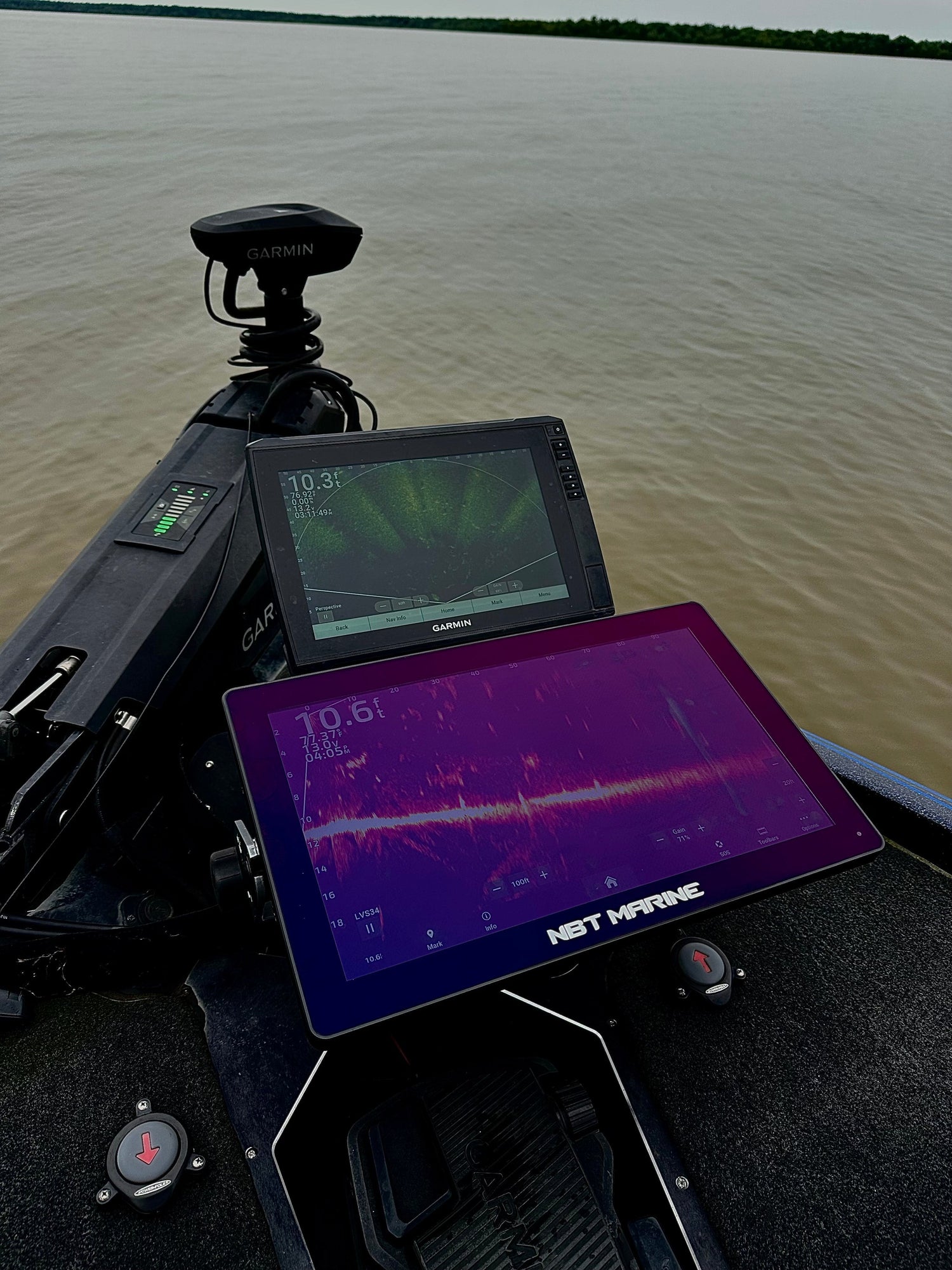

The All new 18 Inch Cruiser Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243/1643 units. (see below for compatible unit lists)
Specifications
- Display Resolution - 1920x1080
- Weight - 13LBS
- Waterproof - IP67

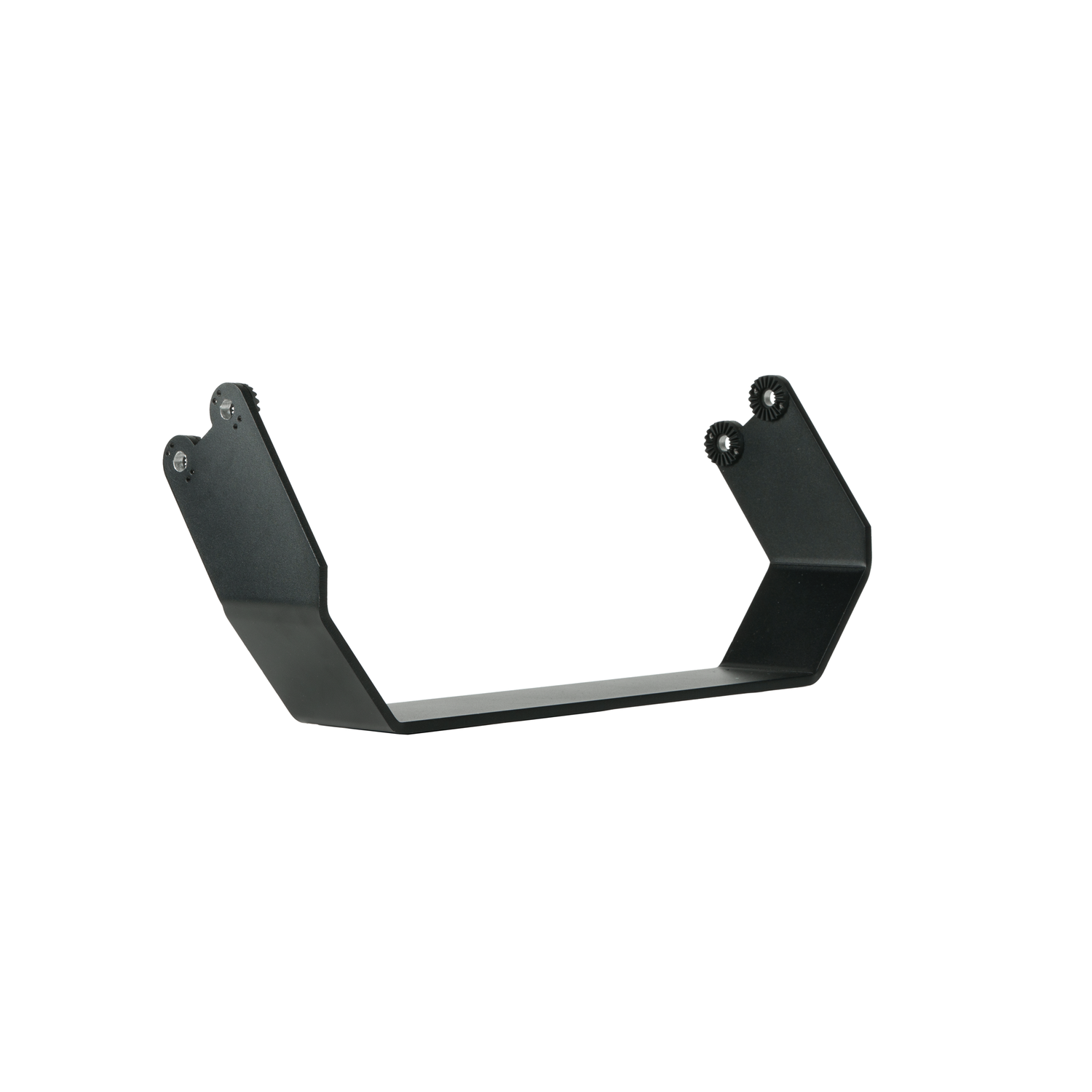

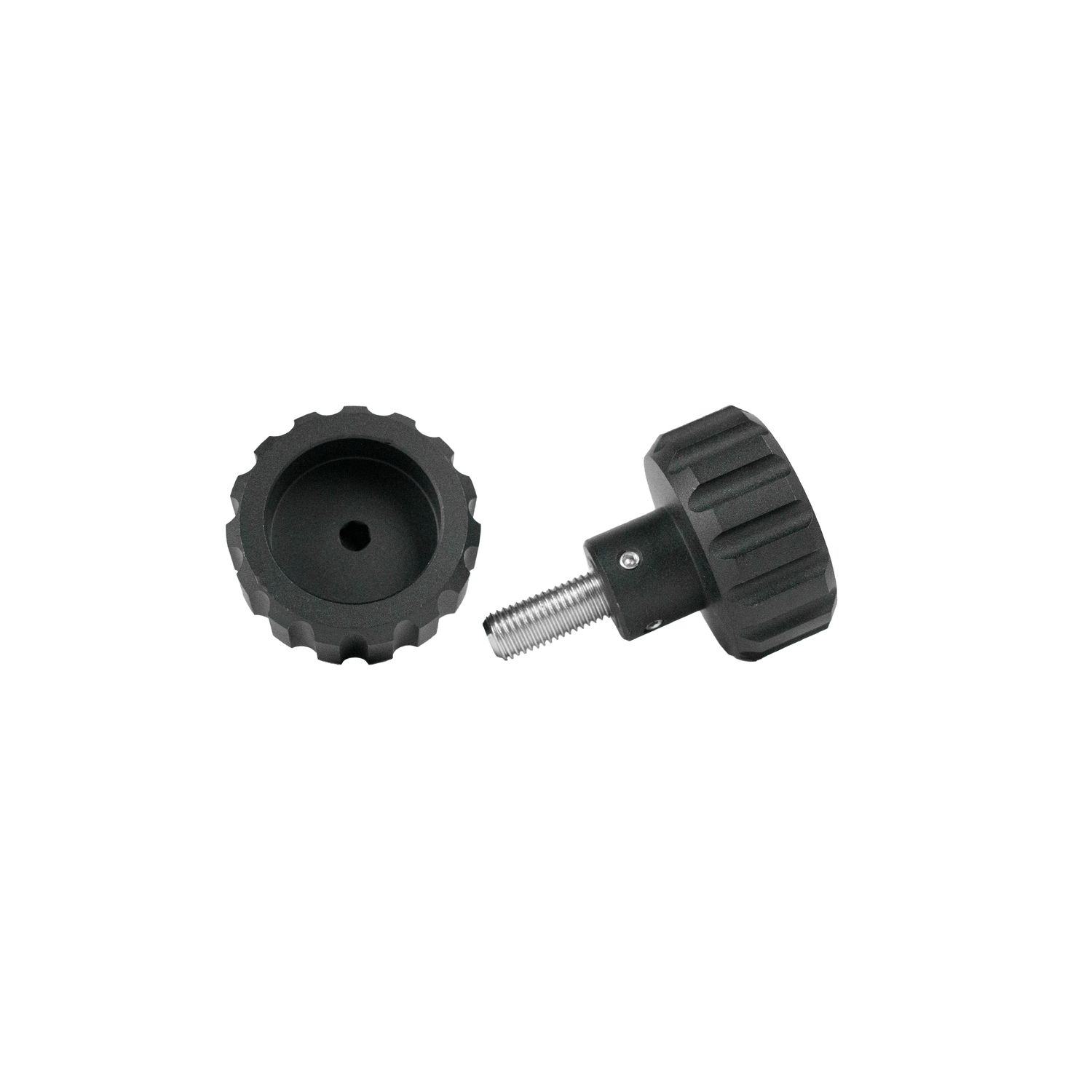

- Mounting Options - Included gimbal
- Touch screen
- Dimensions 18.3" x 11.5" x 21.5"
- Display Size 18.3" diagonal
- Glass Type - Optical Bonding, with Anti-Glare UV coatings
- Brightness - 1500 NITS (vivid sunlight readable)
- Operational Temperature - -20c to +75C (-4F to +170F)
- Touch Type - 10 Points Capacitive touch, Touch ON/OFF control

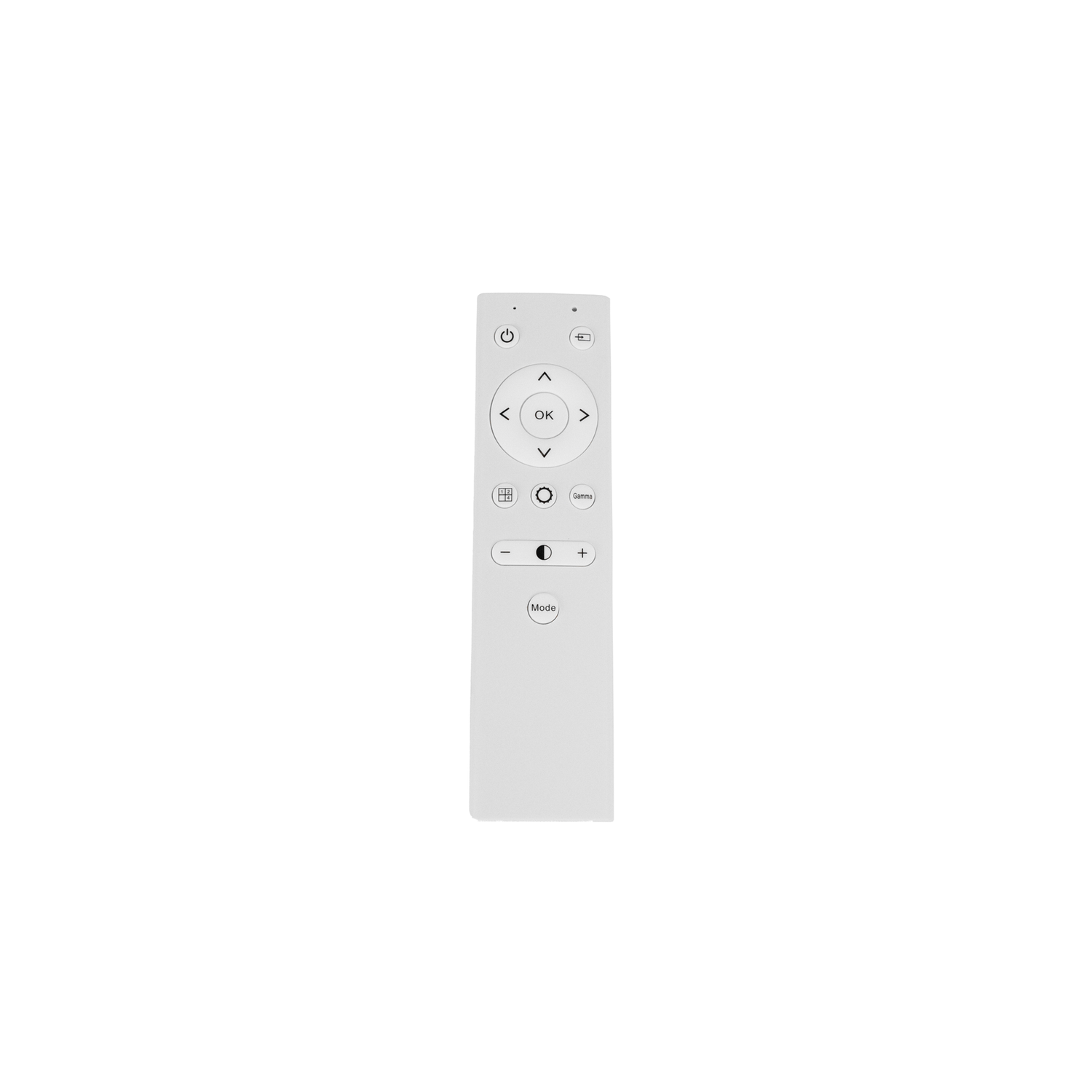

- Remote OSD - Included remote control
- Rugged Shock - 20G
- NOTE - Polarization has been upgraded
Sonar Features and Compatibility
- LIVESCOPE - All compatible units up to 2 Live scopes
- SIDE VU / DOWN VU - All compatible XSV units or GCV box
- Up to 6 Split screen boxes!

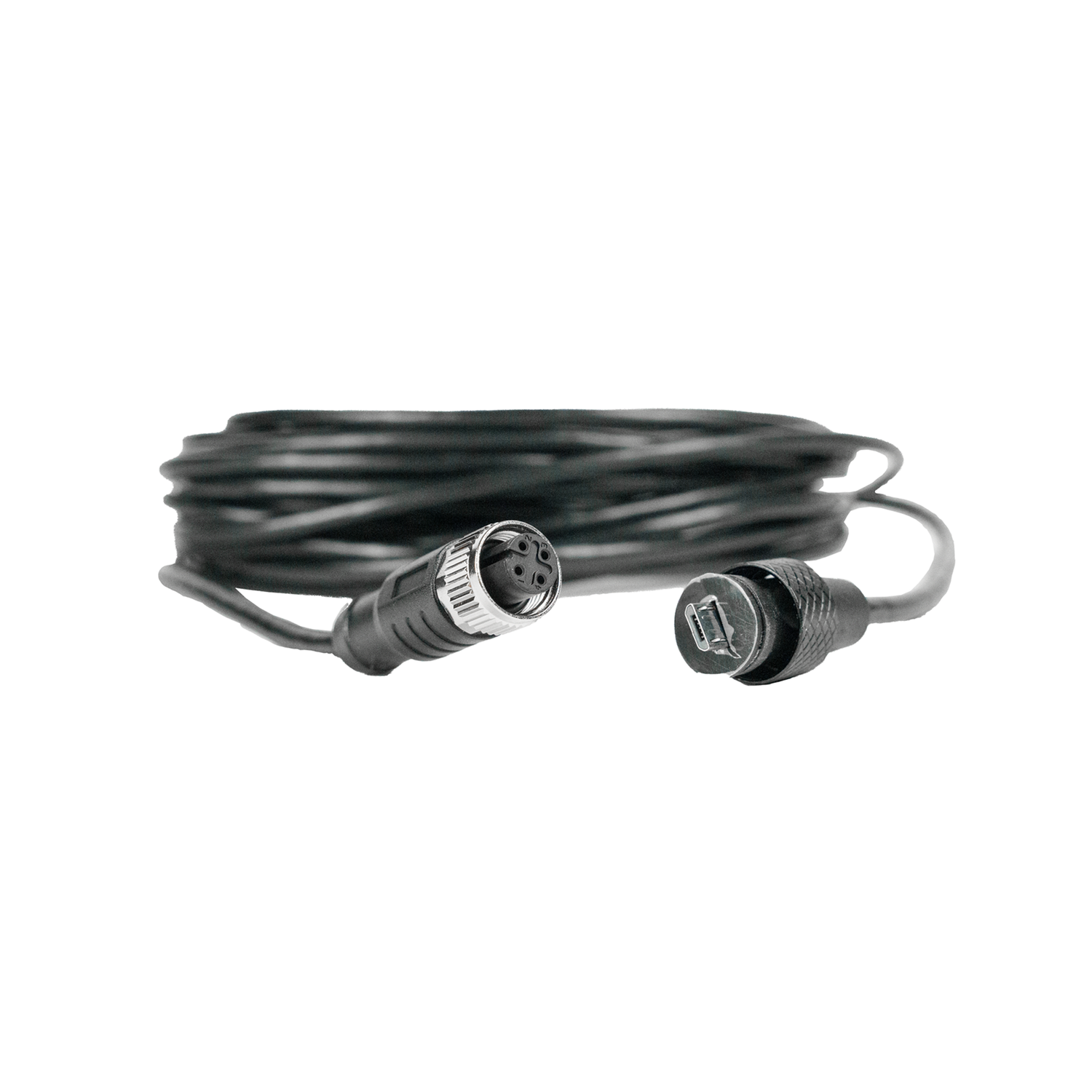

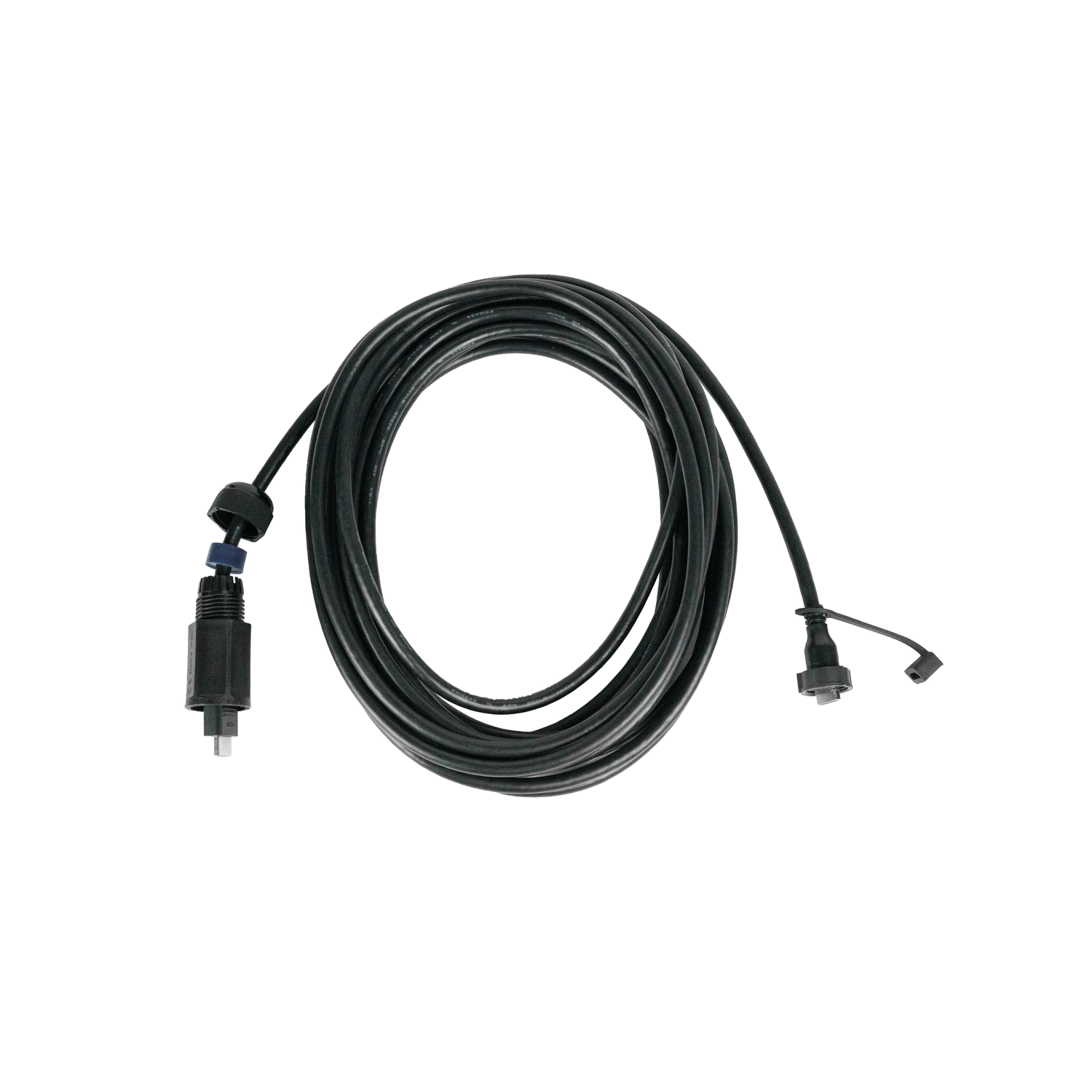

Cords/Cables
- HDMI CABLE - 8 meters (26 feet)

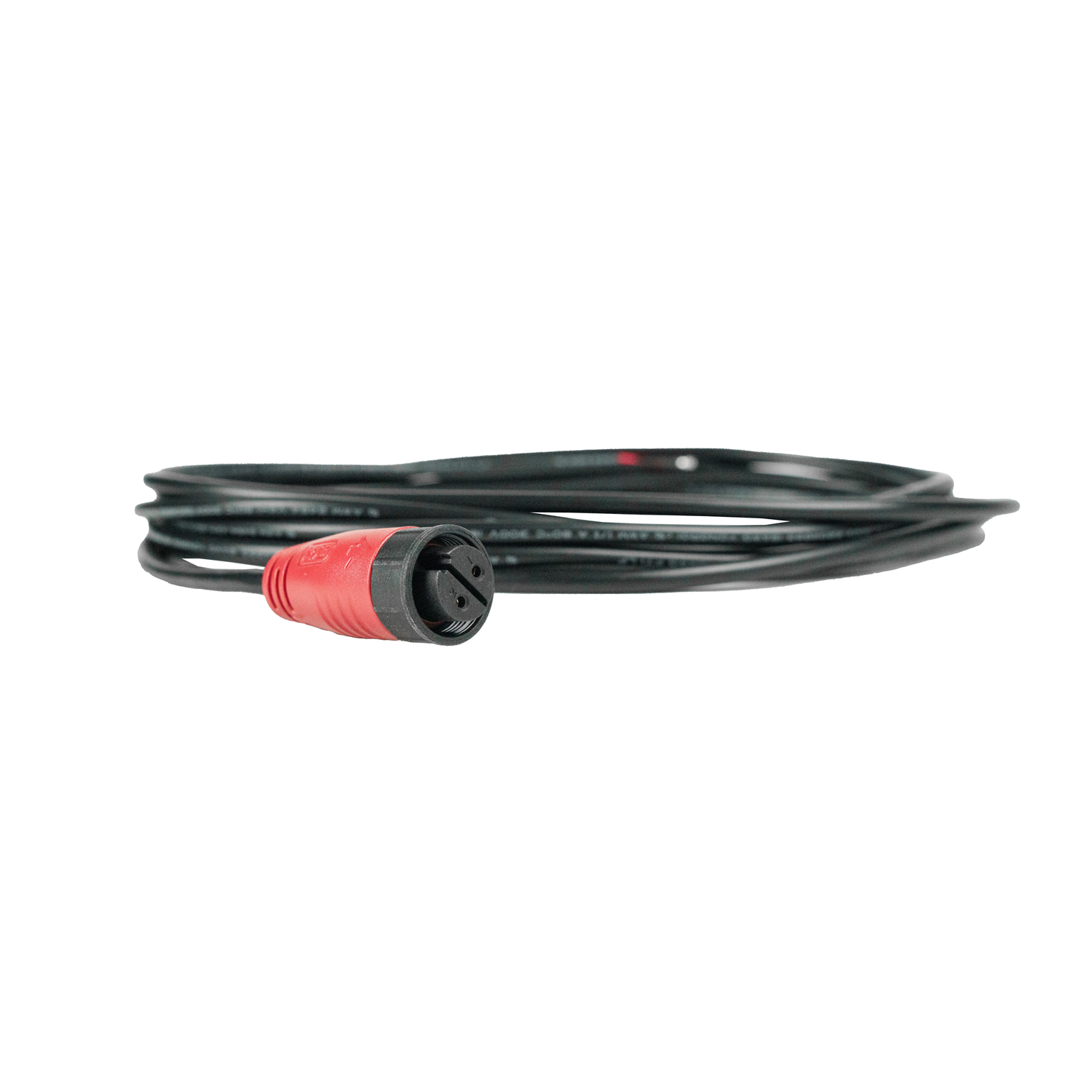

- DC POWER CABLE - 4 meters (13 feet)
- USB CABLE - 8 meters (26 feet)
Electrical Features
- POWER INPUT - 1 x DC 10V to 28V
- TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
- MAXIMUM CURRENT DRAW AT 12 VDC - 6A
Compatible Chart plotters
- GARMIN 8700
- GARMIN 1643 (XSV) or NON
- GARMIN 8610 8410 (XSV) or NON - some limitations
- GARMIN 8612 8412 (XSV) or NON
- GARMIN 8616 8416 (XSV) or NON
- GARMIN 1243 (XSV) or NON - some limitations
