GPS 24xd Marine Position Receiver and Antenna

EXPLORE COASTAL WATERS
The GPS 24xd position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.

Navigate in more locations with expanded GNSS support.

Get high-sensitivity tracking with fast GPS update rate.

Accurately pinpoint your heading — regardless of speed.

It’s water-resistant (IPX7) to withstand the elements.

Install it easily with multiple mounting options.

The antenna is compatible with NMEA 2000® devices.

MULTI-BAND GNSS
Multi-band GNSS provides precise location accuracy1 to within 1 meter to compatible marine multifunction displays, instrument displays and autopilots.

MAGNETIC HEADING
The magnetic heading sensor provides accuracy to within 3 degrees, stabilizing charts, radar overlay and MARPA even at slow speeds.

HIGH-SENSITIVITY GPS
Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.

EXPANDED GNSS SUPPORT
GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo, GLONASS and BeiDou) to more accurately track in challenging conditions than GPS alone.

MULTI-SBAS COMPATIBLE
Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

MOUNTING OPTIONS
Installation is easy with under-deck, pole and surface-mount options.

SPECS
Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
Weight: 7.1 oz (201 g)
Cable length: 19 ft 8" (6 m)
Temperature range: -22° to 176° F (-30° to 80° C)
Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
Compass-safe distance: 5.9" (150 mm)
Power source input: 9-32 Vdc
Input current: 150 mA at 12 Vdc
NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
Position accuracy, typical marine use: < 1 meter CEP, < 3 meters, 95%

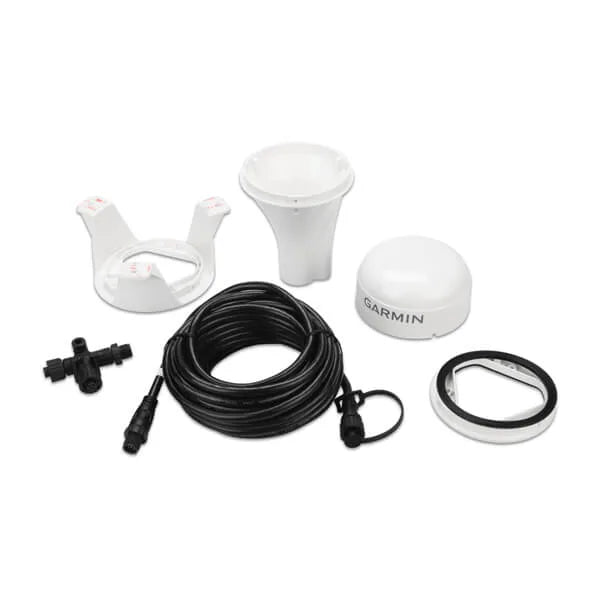

IN THE BOX
GPS 24xd NMEA 2000®
Pole mount
Surface mount
Under deck mount
NMEA 2000 backbone/drop cable (6 meters)
NMEA 2000 T-connector
Documentation
